01 / equipment · 1 included
Business gateway
Agreed network separation and administration for the outdoor service.
Equipment specifications & configuration →Voice & connected sites
Outdoor Business Wi-Fi
Extend an approved wired business network into designated outdoor work or visitor areas with verified mounting and coverage.
2 wired outdoor access points · 4 data outlets
Built around your siteConfigured project quote
A written scope and price follow software, hardware, and site verification.
Pay over time
Discuss this package ↗Ask about financing for eligible equipment, software and installation. You may be able to spread the project cost over time.
Explore financing options ↗
Environment images are illustrative. Manufacturer photos show the listed products or families. Representative components are labeled; accessories, finish, mounts, and orderable configurations are finalized in the bill of materials.
The full starting scope
Everything, unpacked.
Designed for: Patios, courtyards, loading areas, and outdoor business spaces with suitable wired routes.
02 / equipment · 1 included
PoE switch
Power and surge/grounding coordination for the selected wired outdoor endpoints.
Equipment specifications & configuration →03 / equipment · 2 included

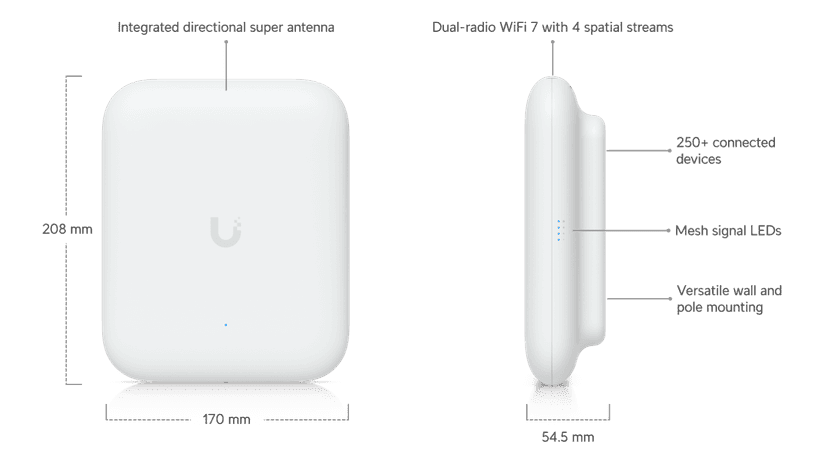

UniFi U7 Outdoor access points
Two outdoor units with antenna orientation and coverage verified against the actual work area.
Equipment specifications & configuration →
04 / equipment · 1 included
Network battery backup
Load and expected runtime are verified for the connected equipment. This does not establish a whole-site outage or server-runtime guarantee.
Equipment specifications & configuration →
05 / installation · 4 surveyed outlets
Outdoor endpoint cabling and installation
Select appropriately rated cable, penetrations, bonding/surge protection, mounting, and transitions for the environment. Building-to-building runs may require fiber or a separate design.
Included delivery work
- Configuration-specific equipment schedule and compatibility review
- Installation, labeling, configuration, and the named software/integration work
- Functional acceptance checks with recorded exceptions
- Operator training, administrator handover, and an operating runbook
In daily operation
What you can do with it.
Use cases are implemented against the agreed application, device configuration, and operating rules.
Support a patio or courtyard
Provide a measured wireless service area for approved staff or guest devices without opening private systems to visitors.
Connect a loading work area
Validate the device task at the dock or work zone with attention to walls, metal, vehicles, and changing obstructions.
Separate outdoor visitors from operations
Apply distinct access and traffic policy while retaining a documented support and administration path.
Build it around your operation
Choose your technology options.
Keep the starting scope or ask us to adapt the complete implementation. Selections are carried into your request and qualified together before a written quote.
Hubbell jacks are matched to the approved rapid termination tool. Panduit panels use their specified compatible terminations; Mini-Com panels do not imply universal Hubbell jack fit. Existing links and new materials are surveyed before reuse or substitution.
From planning to daily use01 02 03 04
A working system, handed over.
Confirm the configuration
Survey the site and agree on exact models, quantities, interfaces, licenses, mounting, access, and the workflow acceptance criteria.
Stage and install
Prepare devices and software, document identifiers, install the scoped infrastructure, and connect the named systems.
Test the actual work
Measure the agreed work areas, test real devices and guest separation, verify cable/PoE operation, and document coverage exceptions.
Train and hand over
Demonstrate the workflow, hand over access and documentation, record remaining decisions, and confirm support ownership.
Set the right expectations
What we confirm together.
Before we start
- Site layout, outdoor work zones, mounting permissions, and exposure conditions
- Wired routes, cable rating, grounding/surge, and authority coordination
- Approved bill of materials, software entitlements, access window, and customer acceptance owner
Outside the starting scope
- Wireless building-to-building bridging, cellular service, and trenching by default
- Guaranteed performance through all walls, vehicles, weather, or obstructions
- Recurring licenses, cloud storage, maintenance, and response coverage are separate unless included in the signed agreement
Ways to expand
- More outdoor service areas
- A separately designed point-to-point bridge
- Outdoor cameras and environmental monitoring
Make it fit your businessStart with this package.
Start with this package.
Build around your operation.
Tell us about your locations, current systems, staff, and daily workflow. We will map the equipment and work to a reviewable scope.
Discuss Outdoor Business Wi-Fi ↗Compare all packages →
