See how it’s connected.
T568A/B wiremap, opens, shorts, reversals, miswires and shield continuity are in the V1 plan, alongside approximate cable length, PoE presence and voltage, and numbered remote identification.
CT-100 + Wizard Wand · In developmentFind the cable.
Find the cable.
Know the connection.
A touchscreen cable tester and tone generator. An illuminated tracing wand. One field-tool concept built around the work you do every day.
Notify me when it’s ready to shipHelp shape the launch. Join the interest list with no deposit.
4.3″Touchscreen design
4 portsOn the front face
USB-CRechargeable design
From tracing a run
to checking the wiring.
Follow the tone.
The main unit’s tone generator and separate Wizard Wand are designed as a paired workflow for locating the cable you need.

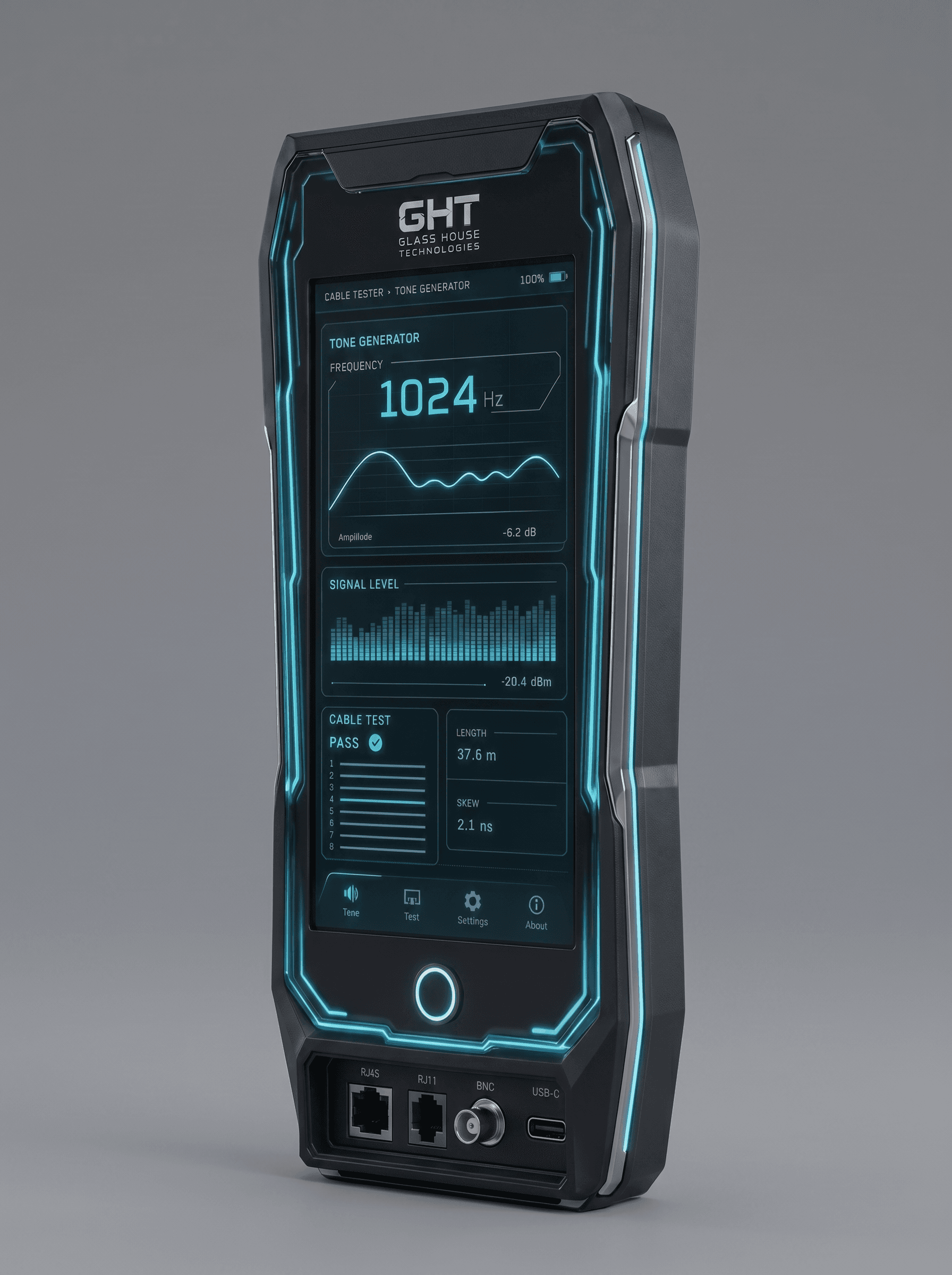

A clearer view in hand.
A portrait capacitive touchscreen, dedicated home button and front-facing connector row bring the controls and cable connections together.

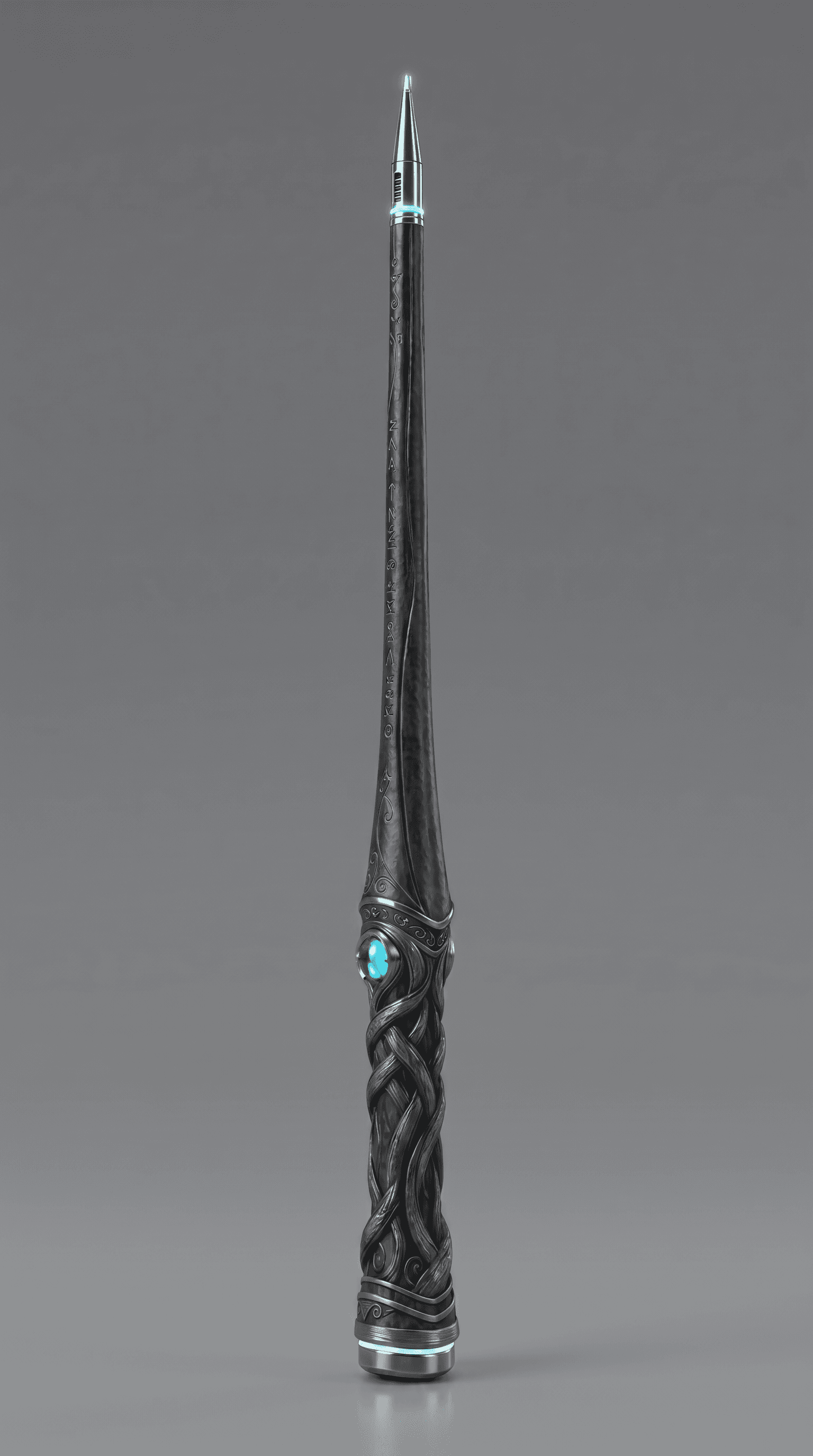

Meet the Wizard WandA field tool
A field tool
with character.
The companion probe brings a distinctive wand form to cable tracing: a slender tip, sculpted grip, and illuminated accents that connect it visually to the CT-100.
The planned role is practical: receive the main unit’s tracing tone while you follow a cable run. The wand’s final electronics, sensitivity, power arrangement and production construction remain to be validated.
Interested in the tester and wand? Join the list ↗Designed from the enclosure inwardSmall details.
Small details.
A considered tool.
The v7 enclosure keeps the original sculpted form with an 86 × 158 mm footprint. A recessed, labeled connector bay puts RJ45, RJ11, BNC and USB-C on the front, with the home button above the row.

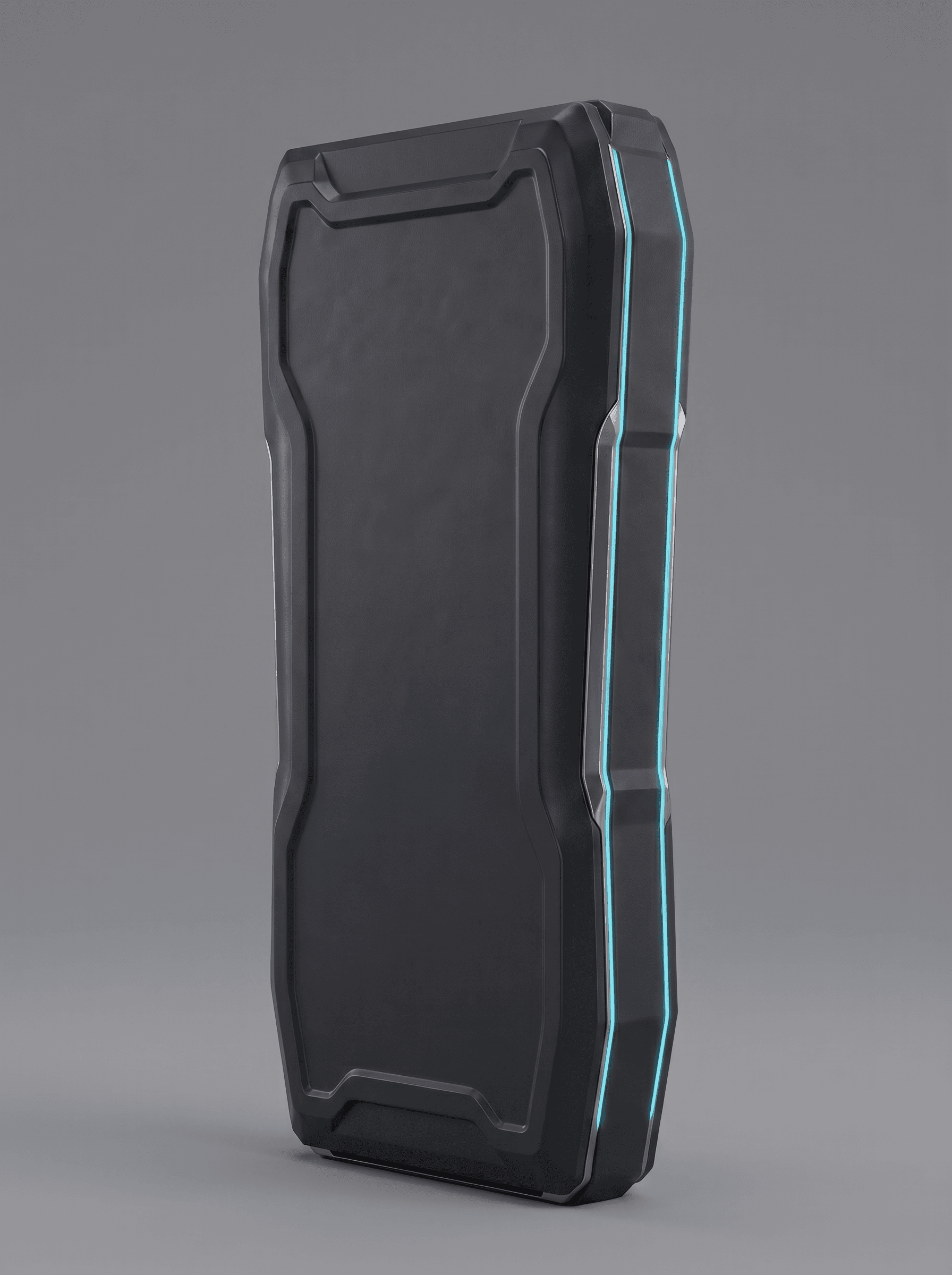

The design includes protected touchscreen glass, a rounded back, hidden magnetic closures and recessed Glass Tech branding. The battery plan calls for a rechargeable approximately 800 mAh LiPo with USB-C power-path charging and a fuel gauge.
Concept lighting, screen artwork and proportions in these renders are illustrative. The specification below reflects the later hardware plan; assembled dimensions remain to be confirmed.
The current product planDetails,
Details,
in one place.
Design specifications and intended capabilities, subject to engineering and field validation.
Get the shipping announcement ↗Testing & tracing
- Product
- CT-100 cable tester and tone generator with Wizard Wand probe
- Planned V1 testing
- T568A/B wiremap; opens, shorts, reversals and miswires; shield continuity; approximate cable length; PoE presence and voltage; numbered remote identification
- Tracing
- Tone generation with a separate illuminated Wizard Wand probe
- Length measurement
- Capacitance-based estimate; ±5–10% engineering target, subject to validation
- Tone generation
- Isolated 1 / 1.2 kHz alternating tone planned for the main unit
- Remote identification
- Passive numbered remote modules planned for identifying cable runs
- V1 limits
- No full TIA-568 certification, NEXT, return loss, insertion loss, ACR-F, split-pair detection or distance-to-fault capability in the documented V1 architecture
Hardware & construction
- Display
- 4.3-inch capacitive touchscreen; 800 × 480 panel mounted in portrait orientation
- Controllers
- ESP32-S3 / Sunton ESP32-8048S043C touchscreen platform, with a separate RP2040 planned for test inputs and outputs
- Main unit dimensions
- 86 × 158 mm footprint; nominal 25 mm enclosure depth. Final assembled dimensions remain to be confirmed.
- Front connections
- RJ45 for Ethernet, RJ11 for telephone cable, BNC for coaxial cable, and USB-C
- Power
- Rechargeable 353759 lithium-polymer battery; approximately 800 mAh in the current design
- Charging
- USB-C with power-path charging and a battery fuel gauge in the mainboard architecture
- Controls
- Touch interface and a physical home button above the connector row, with a three-arc light halo
- Enclosure
- Sculpted body, recessed connector bay, rounded back perimeter, tongue-and-groove seam and six hidden magnet pairs
- Display protection
- Recessed display glass with a foam gasket and internal board supports
- Materials and finish
- ASA planned for field enclosures; matte dark body with illuminated accents and recessed GHT branding
Development & availability
- Development status
- Product concepts, enclosure CAD and mainboard architecture developed. PCB design, firmware, physical component fit and field performance remain to be completed and validated.
- Release details
- Final price, shipping date, battery runtime, measurement accuracy, wand dimensions and final kit contents are not announced.
A few useful answers.
When will it ship, and what will it cost?
A shipping date and final price have not been announced. The interest list helps us gauge demand; we’ll contact subscribers when the machine is ready to ship.
Am I placing a preorder?
No. This is a free notification signup. There is no payment, deposit, reservation or purchase commitment.
Is the wand part of the product concept?
Yes. This page presents the CT-100 and its Wizard Wand tracing probe together. Final kit contents and accessory pricing will be confirmed before ordering opens.
Are the pictures a finished production unit?
They are the original product concept renders. The enclosure has progressed through CAD and print review; the electronics, firmware, wand and final field performance still need validation. Battery runtime, measurement accuracy and environmental ratings are not yet announced.
Be there for the launchPut your name
Put your name
on the list.
Want a CT-100 and Wizard Wand in your kit? Tell us you’re interested. We’ll email you when it’s ready to ship.
Your interest helps us understand demand and plan the first release.
